PowerPoint Presentation - Austin Museum of Art

Fribourg 2002

Radiance Workshop

Page 73

Austin Museum of Art

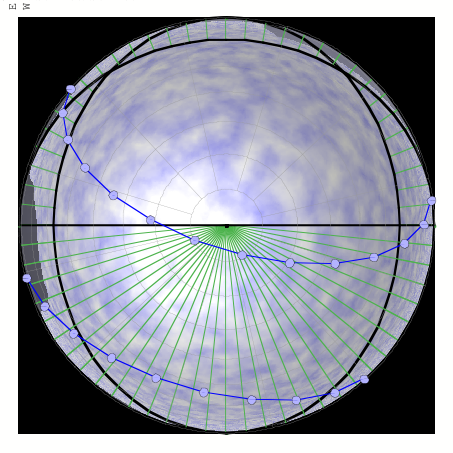

CASE 2A

E-W Shading: No Overlap

N-S Shading: 1:1.5 Spacing

Finish: 80% Reflectance

Transmission: 22.4%

Sunlight Hours: 3 Hours

Time: 9:00a to 12:00p C.D.T.

by AMcneil — last modified Feb 29, 2016 12:27 PM


	Diffuse transmission calculated for this louver configuration (22.4%). The diffused beam contribution is dealt with in a similar fashion but obviously varies depending on solar incidence angle – see the following slides.
